JUMBO WOVEN LARGE BAG-SERVO-HEAT CUTTING MACHINE +Punching Unit

"JUMBO BAG" LARGE WOVEN-BAG "Punching Unit for X Hole and O Hole Punch" SERVO-HEAT"CUTTING"MACHINE

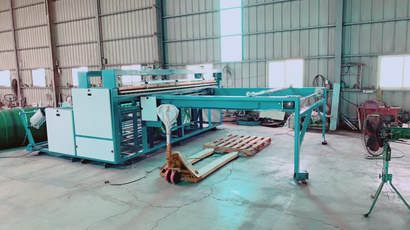

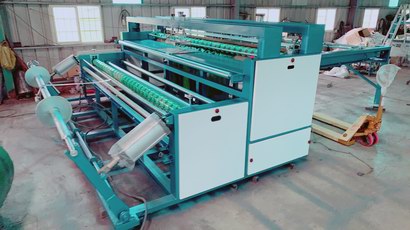

LE-37+Y+O JUMBO WOVEN LARGE BAG-SERVO-HEAT CUTTING MACHINE +Punching Unit

MODEL 型號	LE-37+Y+O
MAX. CUTTING WIDTH 最大寬度	370CM 3700mm
MAX. CUTTING LENGTH 最大長度	1060-3700MM
伺服馬達控制 SERVO MOTOR	2.0kwX1 1.5kwX1

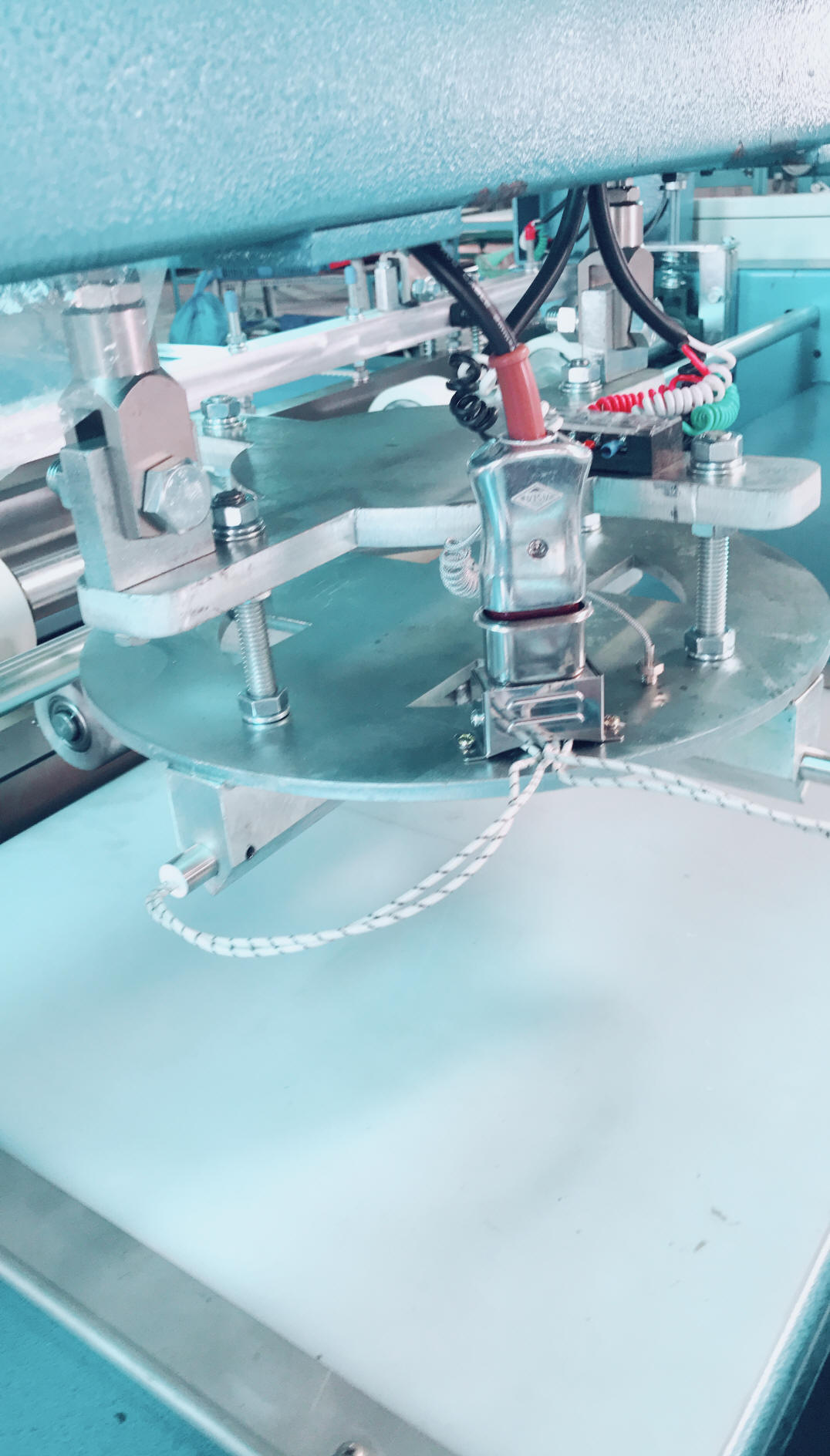

Punching Unit	X Hole and O Hole Punch
WORKING CAPACITY 產量	12-20 cut/min
DRIVING MOTOR 馬達	2HP
ELECTRICITY HEAT 電熱量	4.2KVA
BAG COUNTER 計袋器	1set
EASY OPEN MOUTH DEVICE 開口裝置	1set
AUTO UNWINDER 自動放布台	1set
LOADING CAPACITY 載重量	1250kgs
MANPOWER REQUIRED 人工需求	1person
MACHINERY NET WEIGHT 機器重量	2380kgs
MACHINERY DIMENSION 機器尺寸	L6890 x W4730 x H2350MM
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE 規格若有變動恕不另行通知

Lung - Ye Machinery Co.,Ltd.

NO:9Pei Liao Road,Ma Yuan Village,Tzi Tong County,Yunlih Hsien,Taiwan.

TEL: +886-5-584-6851 FAX: +886-5-585-0074
