L.E-1300+O+X
HOT MELT APPLICATOR
JUMBO BAG PUNCHER CUTTING
"X" HOLE AND "O" HOLE PUNCH& HOT MELT APPLICATOR MACHINE LINE
Both
Side Glue Welding Cutting-Punching Machine -
Specially for U -
Panel Type Jumbo Bag

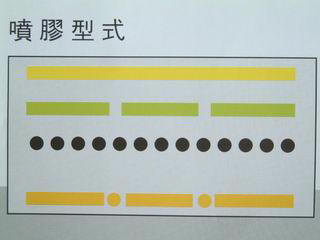

Both ends glue choice
1.ULTRASONIC
。

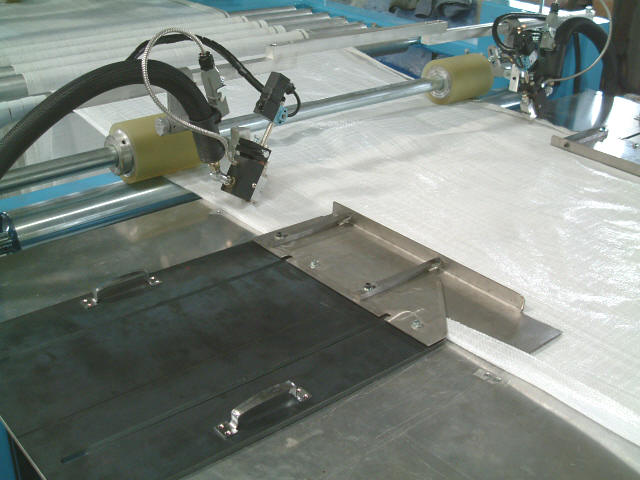

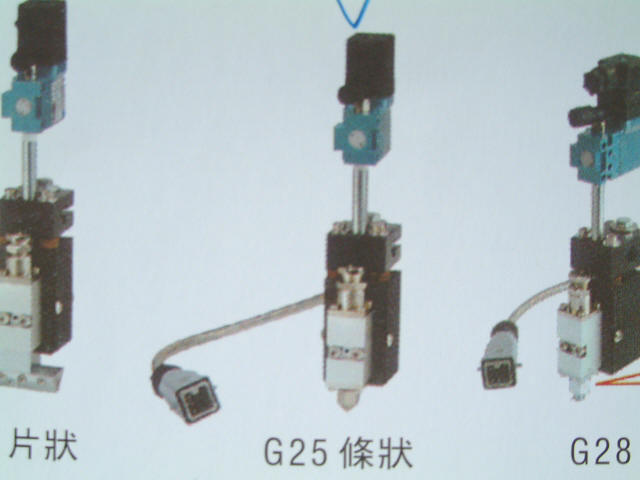

2.hot
melt applicator
Line。 3.High
Hot
wind
Pressure Air blower。
Main Feature

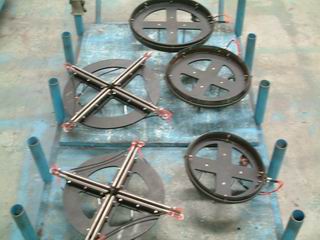

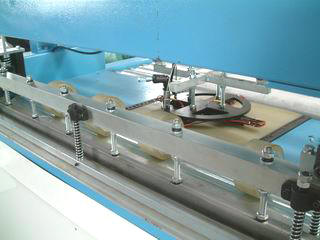

1.Punching Unit for
X Hole and O Hole Punch。
2.Equipped High Quality
Alloy Steel Cutter。
3.Equipped Servo Motor for
precise cuting length。
Ultrasonic welding device
|
MODEL
型號 Both Side /Welding
Cutting-Punching Machine |
LE-1300+O+X |
|
MAX. CUTTING WIDTH
最大寬度 |
900MM~1300MM |
|
MAX. CUTTING LENGTH
最大長度 |
600-9999MM
|
|
MAX. CUTTING
Circular aperture
& X 最大切圓孔 |
300MMx1 390MMx1
440MMx1 |
|
Heats melt glue
Line |
6KG |
|
Accuracy誤差 |
+-1mm |
|
high quality alloy steel cutter |
1set |
|
EPC |
1set |
|
"X" Hole and "O" hole Punch aailable |
1set |
|
Spare Parts備件 |
1
Lot (Free of Charge) |
|
DRIVING AIR切斷空壓缸 |
80X80
|
|
伺服馬達控制
SERVO MOTOR |
1.3kw
JAPAN |
|
WORKING CAPACITY
產量 |
18-24 cut/min
|
|
DRIVING MOTOR 馬達
|
1HP |
|
ELECTRICITY HEAT
電熱量 |
4.6KVA |
|
BAG COUNTER 計袋器
|
1set |
|
AUTO UNWINDER
自動放布台 |
1set |
|
LOADING CAPACITY
載重量 |
1850kgs |
|
MANPOWER REQUIRED
人工需求 |
1~2person |
|
MACHINERY NET WEIGHT
機器重量 |
950kgs |
|
MACHINERY DIMENSION
機器尺寸 |
L5380 x W2230
x H1750MM |
|
THE
SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE
規格若有變動恕不另行通知
|
