MODEL

LE-1210PE

CHARACTERISTIC

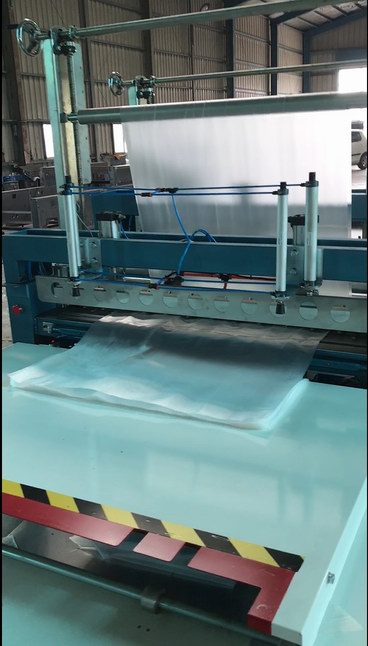

AUTOMATIC PE BAG CUTTING&SEAL

Cutting Knife Unit

  Flat Type High Quality Alloy Steel Cutter

APPLICABLE PLASTIC CLOTH

PE BAGS

MAN POWER

1 PERSONS

POWER REQUIRED

9KW

AIR COMPRESSOR

3HP X 1UNIT

MACHINE DIMENSION

L7680 x W3880 x H1360MM     ( N.W 1380 KGS)

CUBAGE  ARK

1X20"尺

OPP INNER BAG CUTTING LINE

OPP BAG WIDTH

1210MM

OPP BAG LENGTH

1300MM(70%) ~ 2800MM

CONVERTING THICKNESS(m/m)

0.03MM~0.2MM   70%0.05MM

ACCURACY LENGTH (mm)

1~2

CYCLE (R.P.M)

30~120

MOTOR (HP)

2HP

HERTER (kw)

3.2

POWER REQUIRED (kw)

9

DIMENSION L*W*H  (cm)

400*165*146

MACHINE WEIGHT  (kgs)

1380

PACKING L*W*H  (cm)

270*172*170

GROSS WEIGHT  (kgs)

1400

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
