MODEL
型號 |

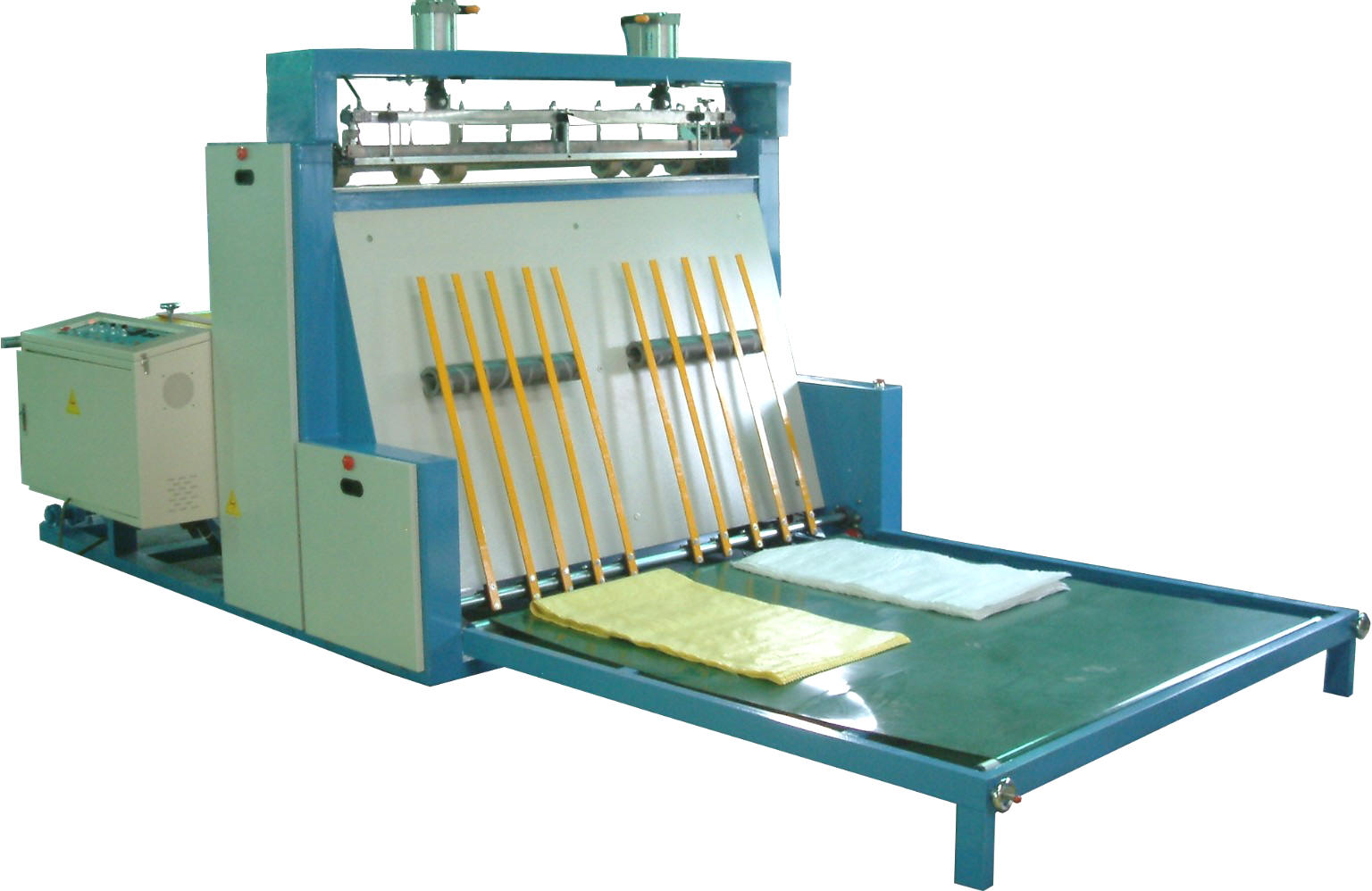

LE-16SF |
|
MAX. CUTTING WIDTH
最大寬度 |
160CM |
|
MAX. CUTTING LENGTH
最大長度 |
600-1350MM |
|
伺服馬達控制
SERVO MOTOR |
2.0kw TECO TSDA50C |
|
WORKING CAPACITY
產量 |
18-22 cut/min |
|
DRIVING MOTOR 馬達
|
2HP |
|
ELECTRICITY HEAT
電熱量 |
4.2KVA |
|
BAG COUNTER 計袋器
|
1set |
|
EASY OPEN MOUTH DEVICE
開口裝置 |
1set |
|
AUTO UNWINDER
自動放布台 |
1set |
|
LOADING CAPACITY
載重量 |
1250kgs |
|
MANPOWER REQUIRED
人工需求 |
1person |
|
MACHINERY NET WEIGHT
機器重量 |
850kgs |
|
MACHINERY DIMENSION
機器尺寸 |
L4380 x W2300 x H2350MM |
|
THE
SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE
規格若有變動恕不另行通知
|
Lung - Ye Machinery Co.,Ltd. NO:9Pei Liao Road,Ma Yuan Village,Tzi Tong County,Yunlih Hsien,Taiwan. TEL: +886-5-584-6851 FAX: +886-5-585-0074 http://www.lungye.com.tw E-mail:lye@lungye.com.tw
|
