90° Bag Transfer Gripper TypTow Servo Motors

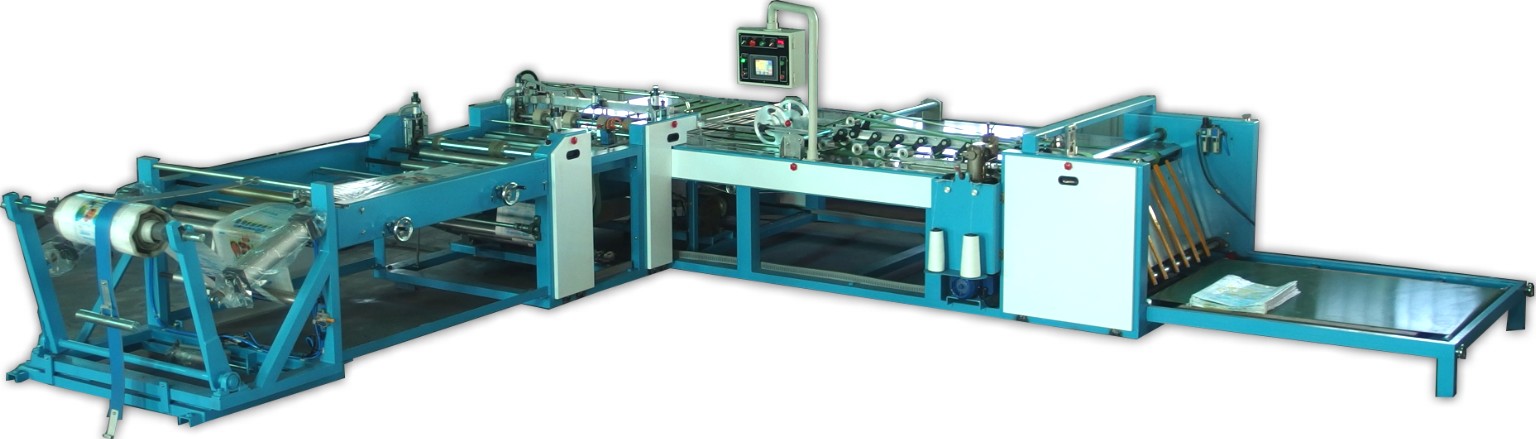

                                                         FULLY AUTOMATIC PP WOVEN BAG CONVERSION LINE   Made in Taiwan

   LE-2000DN2+G

                      PP WOVEN BAGS 90X CLAW TYPE 2 SERVO MOTOR GUSSET DEVICE CUTTING SEWING MACHINE

                                  VCD     Mark Sensor     The new TOW SURFACE broken bags surface inspection receipt device C



Description:
90° Servo Transfer Reciprocate Movement  Gripper Type

Increase pp woven bag transmit stable and the advantages  enhance output 。

Ingredient's quick change

Two Servo Motor increase largely the quantity of output of cut bags。

Heat Cutting inverter Motor Control
Touch Control machine operation interface。

            The new TOW SURFACE broken bags surface inspection receipt device C

High speed production capacity 32~42pcs(BAG/MIN)

              ( new 90° CLAW  Warranty 3 year)

                                                                                             SPECIFICATION

MODEL

LE-2000DN2+G

CHARACTERISTIC

AUTOMATIC CUTTING AND SEWING

 SERVO MOTOR

 3.5HP Servo Motor  x1PCS

        90°Degrees Transfer Driven Motor   3.5HP Servo Motor X1PCS

   CONTINUOUS CUTTING

HEAT SUCCESSIVE CUTTING

       Sewing Machine Driven Motor

          1 HP AC Motor With Inverter Control

  Cutting Knife Driven Motor                    1/2 HP AC Motor With Inverter Control
Cutting Knife Unit               Flat Type High Quality Alloy Steel Cutter
Sewing Unit       New Long  DN-2HS
               Sewing Thread Broken Alarm      Enclosed
               E.P.C     Edge Position Controller      Enclosed

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

32~42pcs(BAG/min)

CUTTING LENGTH

 500~1300 mm

CUTTING WIDTH

300~850 mm

CUTTING ACCURACY

+.- 1mm

DELIVERY UNIT  Bag Delivery (Every 25~ 50 bags)

COUNTING STACK TYPE BELT CONVEYOR

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/mm)

DIAMETER OF UNWINDING CLOTH

1400 mm

SIDE FOLDING WIDTH

15~25mm

MAN POWER

             1 PERSONS

POWER REQUIRED

7.8KW

AIR COMPRESSOR

1HP X 1UNIT

MACHINE DIMENSION

L7980mm x W3880mm x H1360mm  ( N.W2268KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

Gusset Device Standard

Bag width before gusset:560-700 mm

Bag width after gusset :400-600 mm

Gusset deep :50-90 mm

Gusset For Small Bag

Bag width before gusset:480-620 mm

Bag width after gusset :380-500 mm

Gusset deep :50-90 mm

the other unit shall be optional

                          OPTIONAL EQUIPMENTS:

PRINTING MACHINE

1~6 COLOR    LE-2+3    LE-03

sewing machine OIL Heat sink pump 1PCS

           Automatic Detect & Eliminate Broken Bag

1PCS

PRINTING PHOTOCELL (MARK)

1PCS
