LE-2003

PP/PE WOVE BAG SERVO MOTOR CUTTING & SEWING MACHINE

FULLY AUTOMATIC PP WOVEN BAG CONVERSION LINE

This is the latest commission system.
There are one servo motors for this machine, one is used to control the length of bags, the other is used to control the high speed moving bags of commission system.

SERVOCONTOL SUPER-SPEED PP.PE WOVEN BAG HEAT CUTTING  SEWING MACHINE

MODEL

LE-2003

CHARACTERISTIC

AUTOMATIC CUTTING&SEWING

                              SERVO MOTOR

　                              2.0kw x1         JAPAN

SUCCESSIVE CUTTING

　HEAT SUCCESSIVE CUTTING

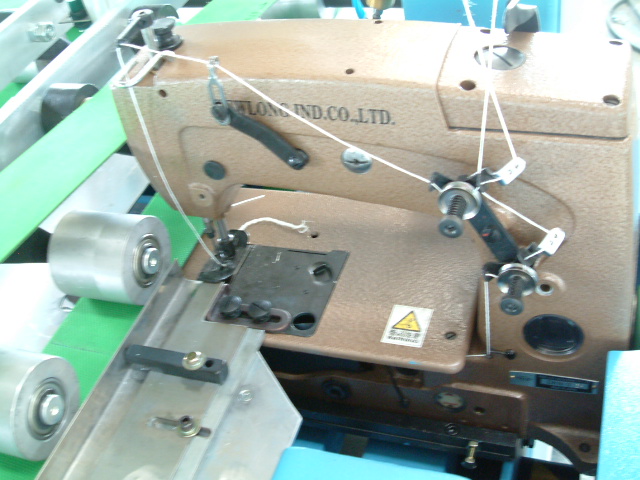

SEWING MACHINE

(DKN-3BP) 1PCS

LAMINATED CUTTING

1PCS

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

42~52pcs(BAG/MIN)

CUTTING LENGTH

 550~1250 MM

CUTTING WIDTH

400~850 MM

CUTTING ACCURACY

+.-  1MM

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

3.8~8 (P/MM)

DIAMETER OF UNWINDING CLOTH

1200 MM

SIDE FOLDING WIDTH

15~25MM

人力 MAN POWER

1 PERSONS

MAIN DRIVING MOTOR

AC   2HP

POWER REQUIRED

14.2KW

AIR COMPRESSOR

3HP X 1UNIT

DELIVERY UNIT

COUNTING STACK TYPE BELT CONVEYOR

MACHINE DIMENSION

L7880 x W3880 x H1360MM    (N.W 3250KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

               OPTIONAL EQUIPMENTS:
1~6 PRINTING MACHINE  1~6COLOR
Automatic Detect & Eliminate Broken Bag 1PCS

PRINTING PHOTOCELL (MARK)

1PCS
