pp woven bag Automatic Cutting and sewing Machine

         FULLY AUTOMATIC PP WOVEN BAG CONVERSION LINE   Made in Taiwan

         90° Bag Transfer Gripper Type Tow Servo Motors

   LE-2025DN2  ( new 90° Gripper Warranty 3 year)

                                                VCD  high speed 45~56pcs(BAG/MIN)

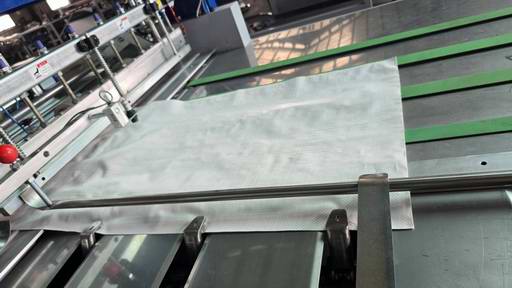

PP WOVEN BAGS 90° Gripper Type Servo Motor cutting sewing   90° Transfer Grippers



 ( new 90° CLAW TYPE Warranty 3 year)



Description:
　

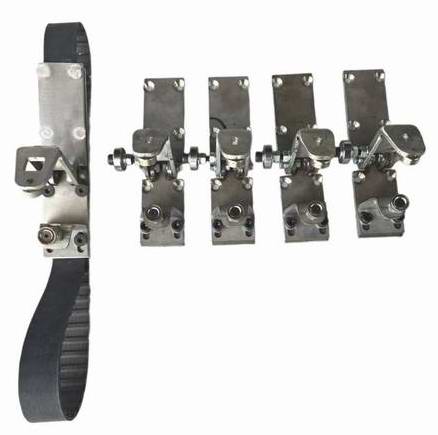

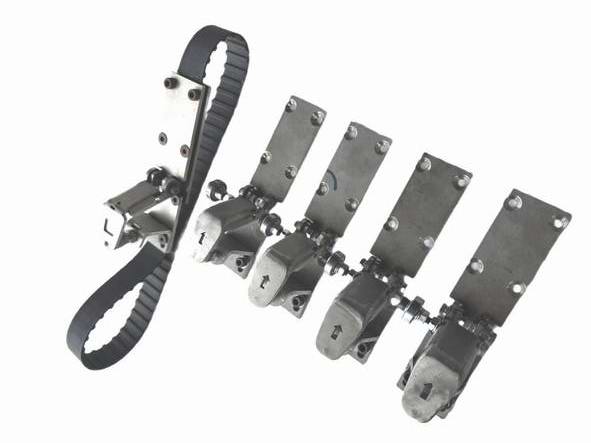

● 90° Servo Transfer Reciprocate Movement  Gripper Type。

● Increase pp woven bag transmit stable and the advantages  enhance output 。

● Ingredient's quick change。

● Two Servo Motor increase largely the quantity of output of cut bags。

● Heat Cutting inverter Motor Control 。

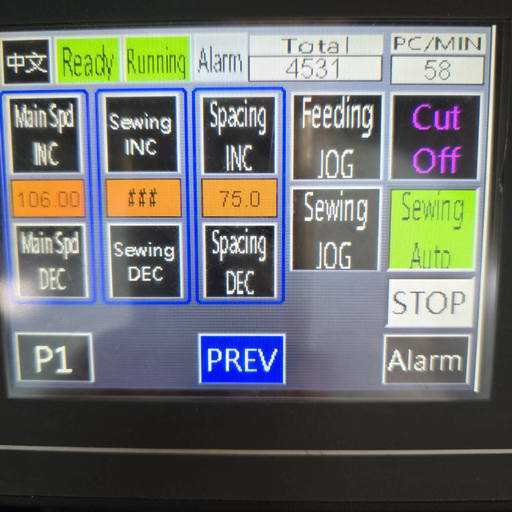

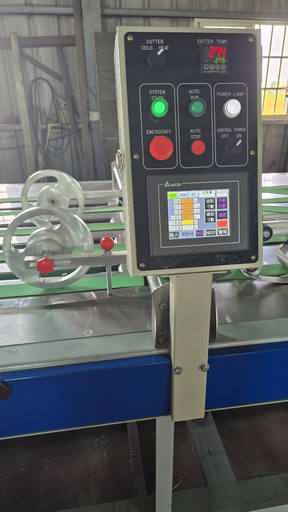

● Touch Control machine operation interface。

        ●  The new two surfaces broken bags surface inspection receipt device 。

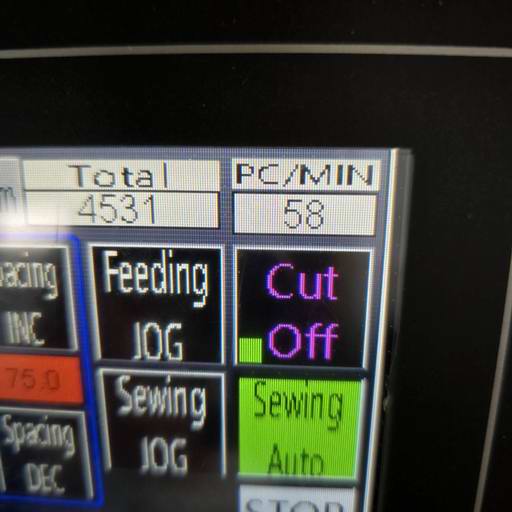

● High speed production capacity high speed 45~56pcs(BAG/MIN)。

              ( new 90° Gripper Warranty 3 year)

The new two surfaces broken bags surface inspection receipt device 。

 SPECIFICATION

MODEL

LE-2025DN2

CHARACTERISTIC

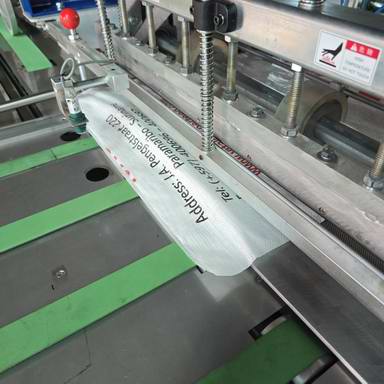

AUTOMATIC CUTTING AND SEWING

 SERVO MOTOR

 2HP Servo Motor  x1PCS

        90°Degrees Transfer Driven Motor   3HP Servo Motor X1PCS
   CONTINUOUS CUTTING2025 New high speed HEAT SUCCESSIVE CUTTING

       Sewing Machine Driven Motor

          1 HP AC Motor With Inverter Control

 Cutting Sewing Length                 500-1350mm Adjustable
  Cutting Knife Driven Motor     1/2 HP AC Motor With Inverter Control
Sewing Unit      New Long DN-2HS
               Sewing Thread Broken Alarm     Enclosed
               E.P.C     Edge Position Controller     Enclosed

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

45~56pcs(BAG/min)

CUTTING LENGTH

1400 mm

CUTTING WIDTH

300~850 mm

CUTTING ACCURACY

+.- 1mm

DELIVERY UNIT  Bag Delivery (Every 25~ 50 bags)

COUNTING STACK TYPE BELT CONVEYOR

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/mm)

DIAMETER OF UNWINDING CLOTH

1400 mm

SIDE FOLDING WIDTH

15~25mm

MAN POWER             1 PERSONS

POWER REQUIRED

7KW

AIR COMPRESSOR

1HP X 1UNIT

MACHINE DIMENSION

L5800mm x W3760mm x H1590mm  ( N.W2260KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

　





   LUNG YE MACHINERY CO., LTD.

FACTORY:NO:9Pei Liao Road , Ma Yuan Village , Tzi Tong County , Yunlin Hsien , Taiwan 64746
       Tel: 886-5-584-6851                 Fax: 886-5-585-0074

 https://www.lungye.com.tw    E-mail:lye@lungye.com.tw   E-mail:lye@lye.url.tw

              Ordering information: Minimum Order: Negotiable

   Payment Terms : L/C; T/T and/or Bank Draft  Machine Design & Fabrication

Lung Ye Machinery Co., Boss   Mr. Wang            E-mail: lye@ppwovenbag.com.tw
