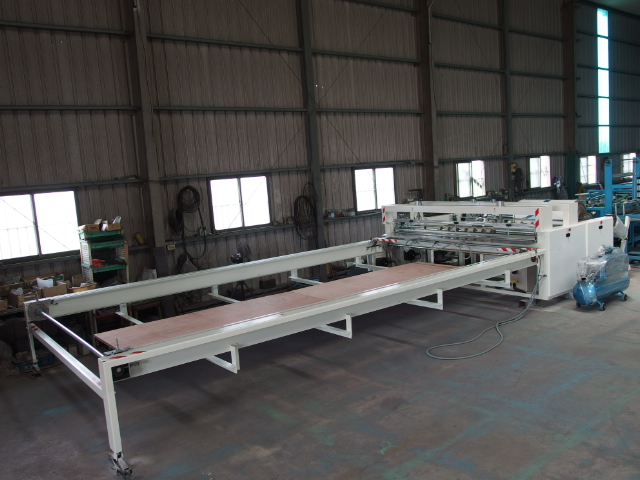

LE-24+Y+O

"JUMBO BAG" WOVEN-BAG "Punching Unit for  X Hole and O Hole Punch" SERVO-HEAT"CUTTING"MACHINE

"JUMBO Bag""CUTTING"MACHINE

             VCD1                              VCD2

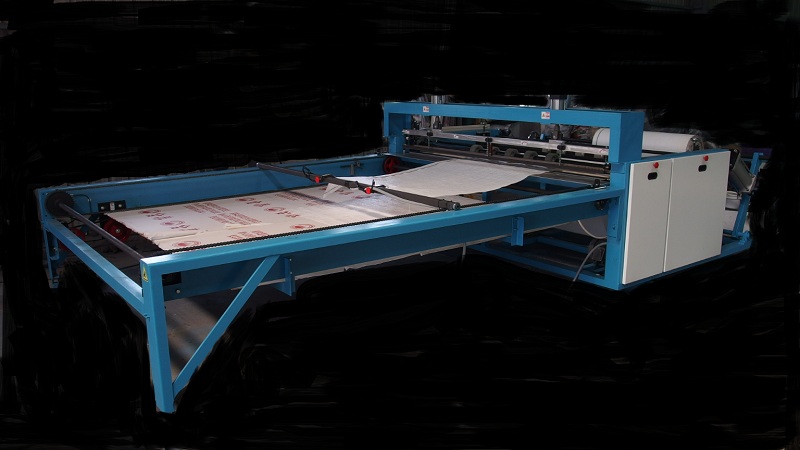

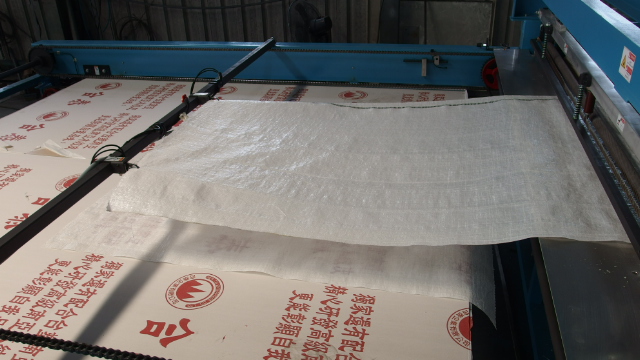

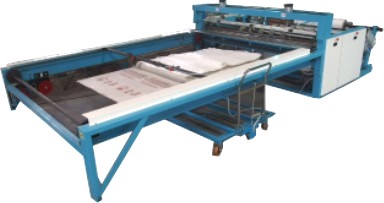

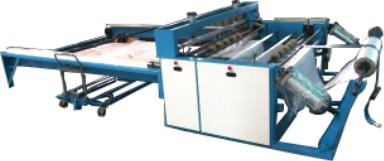

LE-22+Y  "JUMBO BAG" WOVEN-BAG-SERVO-HEAT"CUTTING"MACHINE



     VCD1                               VCD2



 SERVO MOTOR

MODEL 型號

LE-24+Y+O

MAX. CUTTING WIDTH 最大寬度

240CM

MAX. CUTTING LENGTH 最大長度

600-3000MM

伺服馬達控制    SERVO MOTOR

3.0kw

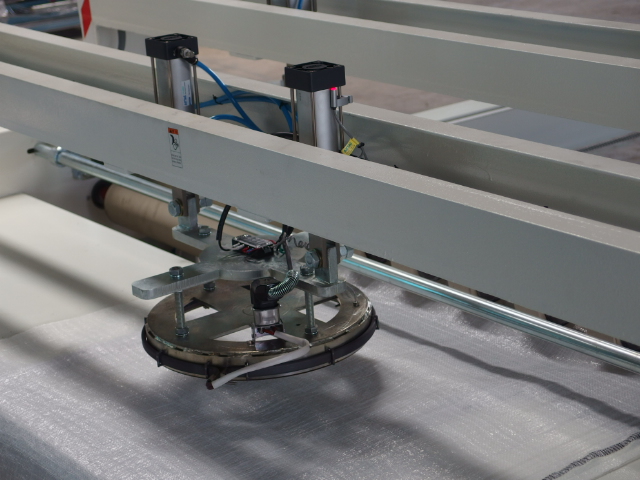

Punching Unit

X Hole and O Hole Punch

WORKING CAPACITY 產量

10-20 cut/min

DRIVING MOTOR 馬達

2HP

ELECTRICITY HEAT 電熱量

4.2KVA

BAG COUNTER 計袋器

1set

EASY OPEN MOUTH DEVICE 開口裝置

1set

AUTO UNWINDER 自動放布台

1set

LOADING CAPACITY          載重量

1250kgs

MANPOWER REQUIRED 人工需求

1person

MACHINERY NET WEIGHT   機器重量

1850kgs

MACHINERY DIMENSION 機器尺寸

L6890 x W3200 x H2350MM

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
規格若有變動恕不另行通知

MODEL 型號

LE-22+Y

MAX. CUTTING WIDTH 最大寬度

220CM

MAX. CUTTING LENGTH 最大長度

600-3000MM

伺服馬達控制    SERVO MOTOR

3.0kw

WORKING CAPACITY 產量

10-20 cut/min

DRIVING MOTOR 馬達

2HP

ELECTRICITY HEAT 電熱量

4.2KVA

BAG COUNTER 計袋器

1set

EASY OPEN MOUTH DEVICE 開口裝置

1set

AUTO UNWINDER 自動放布台

1set

LOADING CAPACITY          載重量

1250kgs

MANPOWER REQUIRED 人工需求

1person

MACHINERY NET WEIGHT   機器重量

1250kgs

MACHINERY DIMENSION 機器尺寸

L6890 x W3200 x H2350MM

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
規格若有變動恕不另行通知

Lung - Ye Machinery Co.,Ltd.

 NO:9Pei Liao Road,Ma Yuan Village,Tzi Tong County,Yunlih Hsien,Taiwan.

                                    TEL: +886-5-584-6851        FAX: +886-5-585-0074

                                   http://www.lungye.com.tw      E-mail:lye@lungye.com.tw
