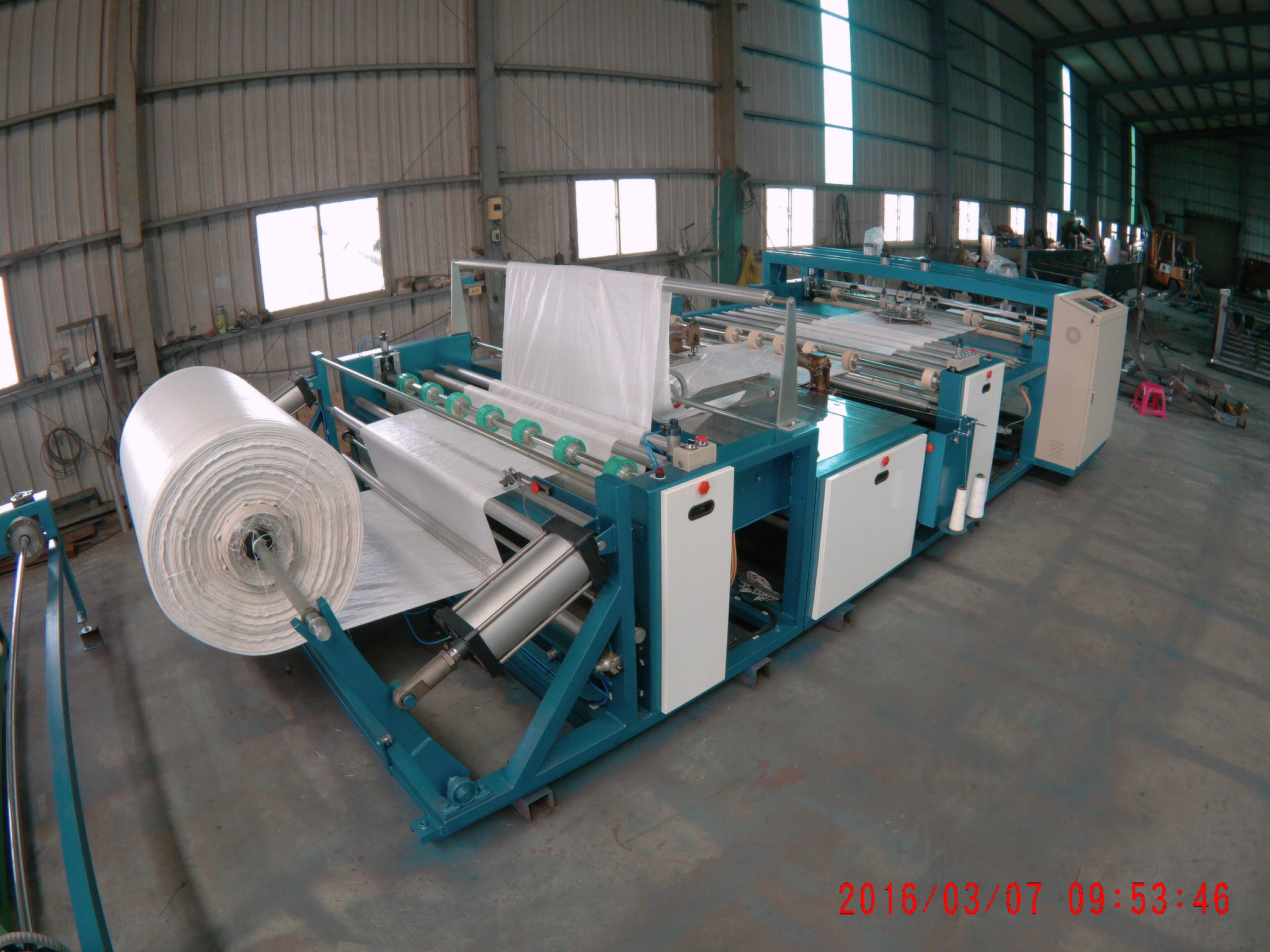

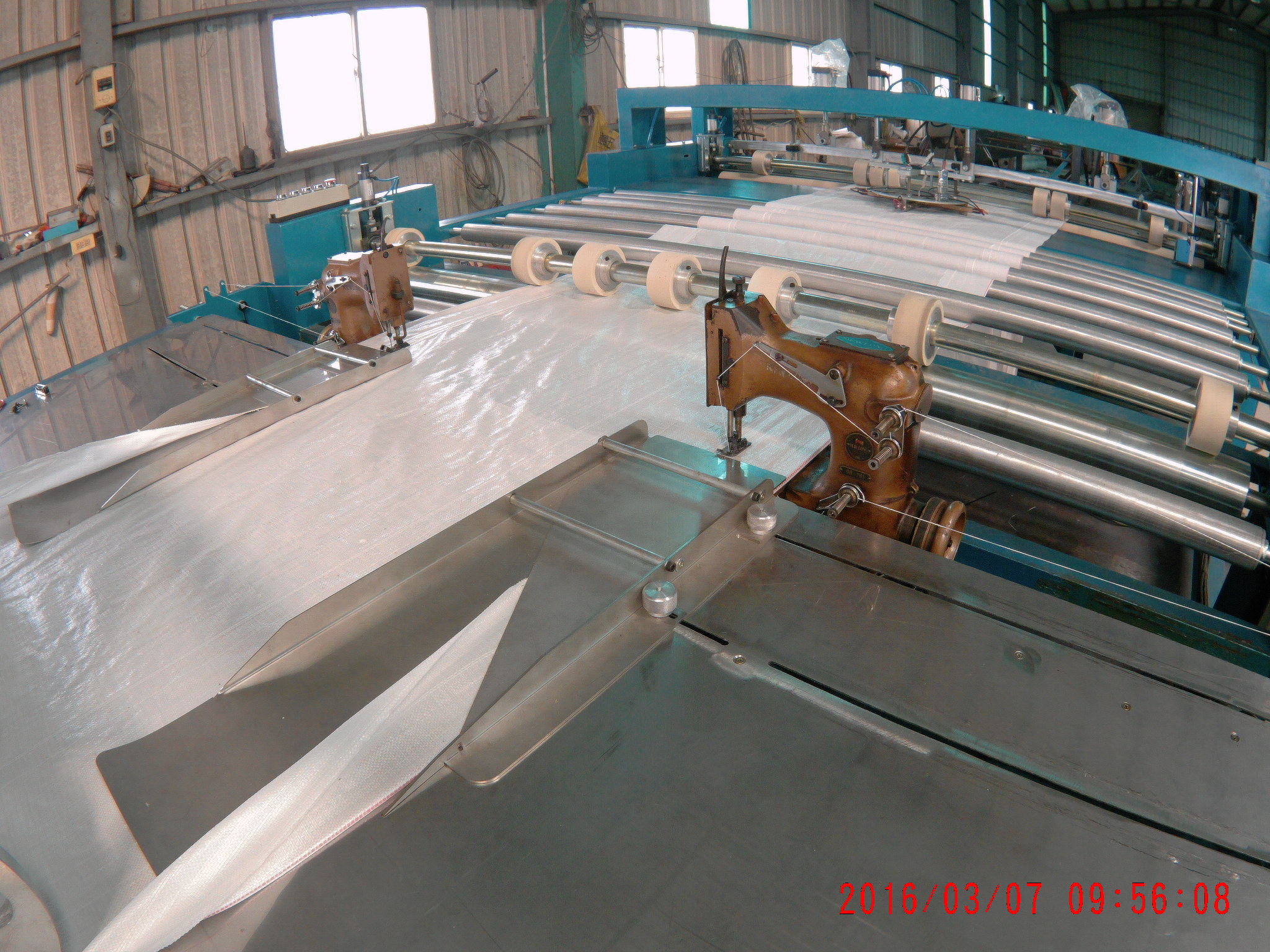

MODEL 型號 Both Side /Welding Cutting-Punching Machine

       LE-2200+O+X+S

MAX. CUTTING WIDTH 最大寬度

 900MM~1300MM

MAX. CUTTING LENGTH 最大長度

1200-9999MM

MAX. CUTTING Circular aperture & X 最大切圓孔

300MMx1        390MMx1        440MMx1

New Long  DN2HSX1 DN2LX1

Accuracy誤差

+-1mm

high quality alloy steel cutter

1set

EPC

1set

"X" Hole and "O" hole Punch aailable

1set

Spare Parts備件

1 Lot  (Free of Charge)

DRIVING AIR切斷空壓缸

80X80

伺服馬達控制    SERVO MOTOR

2kw X1 1KW X2

WORKING CAPACITY 產量

18-24 cut/min

DRIVING MOTOR 馬達

1HP

ELECTRICITY HEAT 電熱量

4.6KVA

BAG COUNTER 計袋器

1set

AUTO UNWINDER 自動放布台

1set

LOADING CAPACITY          載重量

1850kgs

MANPOWER REQUIRED 人工需求

1~2person

MACHINERY NET WEIGHT   機器重量

1250kgs

MACHINERY DIMENSION 機器尺寸

L5580 x W2530 x H1750MM

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
規格若有變動恕不另行通知
