MODEL

LE-293V+01

CHARACTERISTIC

AUTOMATIC PP WOVEN BAG TUBULAR SEWING AND BACK COVER BOTTOM SEWING CUTTING MACHINE

APPLICABLE PLASTIC CLOTH

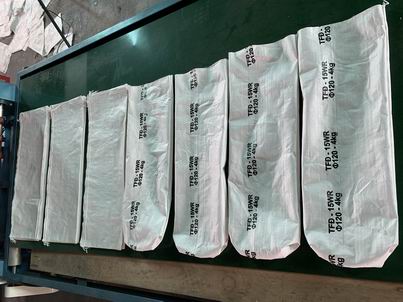

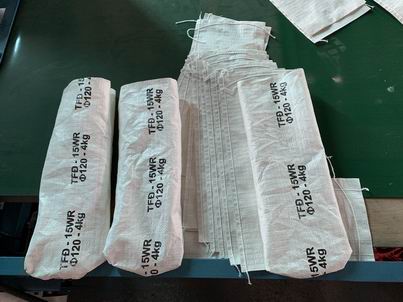

pp woven bag

MAXIMUM OF CUTTING LENGTH

450~750 MM (+.- 3MM)

MAXIMUM OF CUTTING WIDTH

 78~280 MM (+.- 3MM)

Single material

220-820 mm

Sewing Unit

Left side 1 Set   Right side1 Set

Automatic receipt count

1 Set

One Color Machine

1 Set

印刷版 PRINTING

RUBBER PLATE , ZINE PLATE (7MM)

油墨 PRINTING INK

FLEXO INK 水性

印刷面積 AREA OF PRINTING

L768MM X W293MM

Production capacity

12-15 pcs ( bag/min)

Bag folding device

1 Set

Servo Motor

400Wx3   1.5 hpx1   2 hpx3  1hpx1

Voltage

380V 50HZ 3 phase

CUTTING DEVICE

1 Set

MAX. ROLL WEIGHT

150KGS

INNER DIAMETER OF BOBBIN

Inner dia. 3 inch

EDGE POSITION CONTROLLER (E.P.C.)

Equipped

MAN POWER

1~2 PERSON

AC MOTOR

2HPx2

POWER COMSUMPTION

10.5KW

VOLTAGE

3 phase 380 V 50HZ

ELECTRIC HEAT

2500Wx1

MACHINE DIMENSION

L8690 x W7580x H1200MM (N.W 2990KGS) 40”x1

计数器 counter

Enclosed

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
