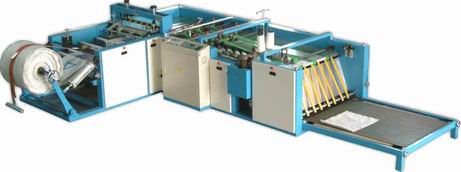

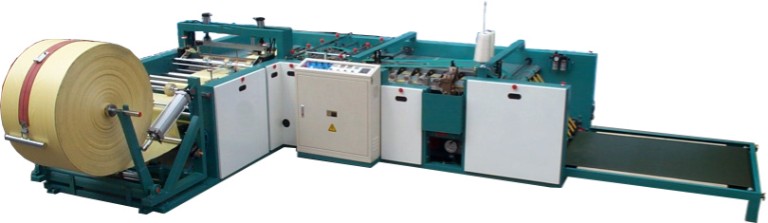

MODEL

LE-30

CHARACTERISTIC

AUTOMATIC CUTTING&SEWING

SEWING MACHINE

(DN-2HS) 1PCS

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

25~32pcs(BAG/MIN)

CUTTING LENGTH

 550~1250 MM

CUTTING WIDTH

400~850 MM

CUTTING ACCURACY

+.-  4MM

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/MM)

DIAMETER OF UNWINDING CLOTH

1200 MM

SIDE FOLDING WIDTH

15~25MM

MAN POWER

1 PERSONS

MAIN DRIVING MOTOR

AC   2HPX1  ,  1HPX2  ,  1/4HPX1

POWER REQUIRED

7KW

AIR COMPRESSOR

3HP X 1UNIT

DELIVERY UNIT

COUNTING STACK TYPE BELT CONVEYOR

MACHINE DIMENSION

L7680 x W3880 x H1360MM     ( N.W 2850KGS)

CUBAGE  ARK

1X20"尺

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
