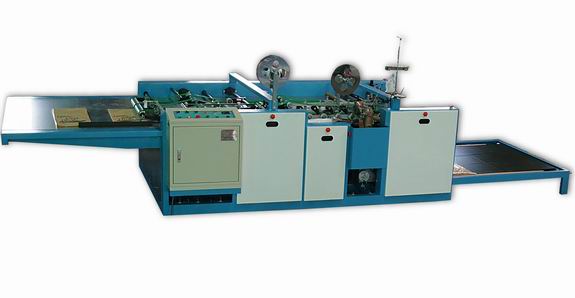

LE-33

AUTOMATIC PP.PE WOVEN BAG &PAPER BAG&OPP BAG

SEWING MACHINE

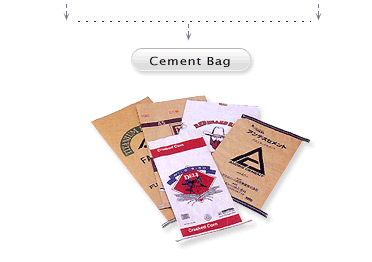

PAPER BAG

　

                                                    PPWOVENBAG

　

                                                           OPP BAG&(Open Easy)

MODEL

LE-33

CHARACTERISTIC

AUTOMATIC  SEWING

APPLICABLE PLASTIC CLOTH

PP WOVEN BAG&PAPER BAG&OPP BAG

PRODUCTION CAPACITY

33-40pcs(BAG/MIN)

MAXIMUM OF LENGTH

 1300MM

MAXIMUM OF WIDTH

 400~850MM

SIDE FOLDING WIDTH

10-25MM

 MAIN DRIVING MOTOR

AC   2HPX1

POWER REQUIRED

6.5KW

 STITCHING RANGE

6~12 (P/MM)

MACHINE DIMENSION

L5360 x W1650 x H1000MM (N.W 2300KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

   LUNG YE MACHINERY CO., LTD.

FACTORY:NO:9Pei Liao Road , Ma Yuan Village , Tzi Tong County , Yunlin Hsien , Taiwan 647
       Tel: 886-5-584-6851    Fax: 886-5-585-0074

  https://www.lungye.com.tw         E-mail: lye@lungye.com.tw           E-mail:lye@lye.url.tw

Lung Ye Machinery Co., Boss   Mr. Wang            E-mail: lye@ppwovenbag.com.tw
