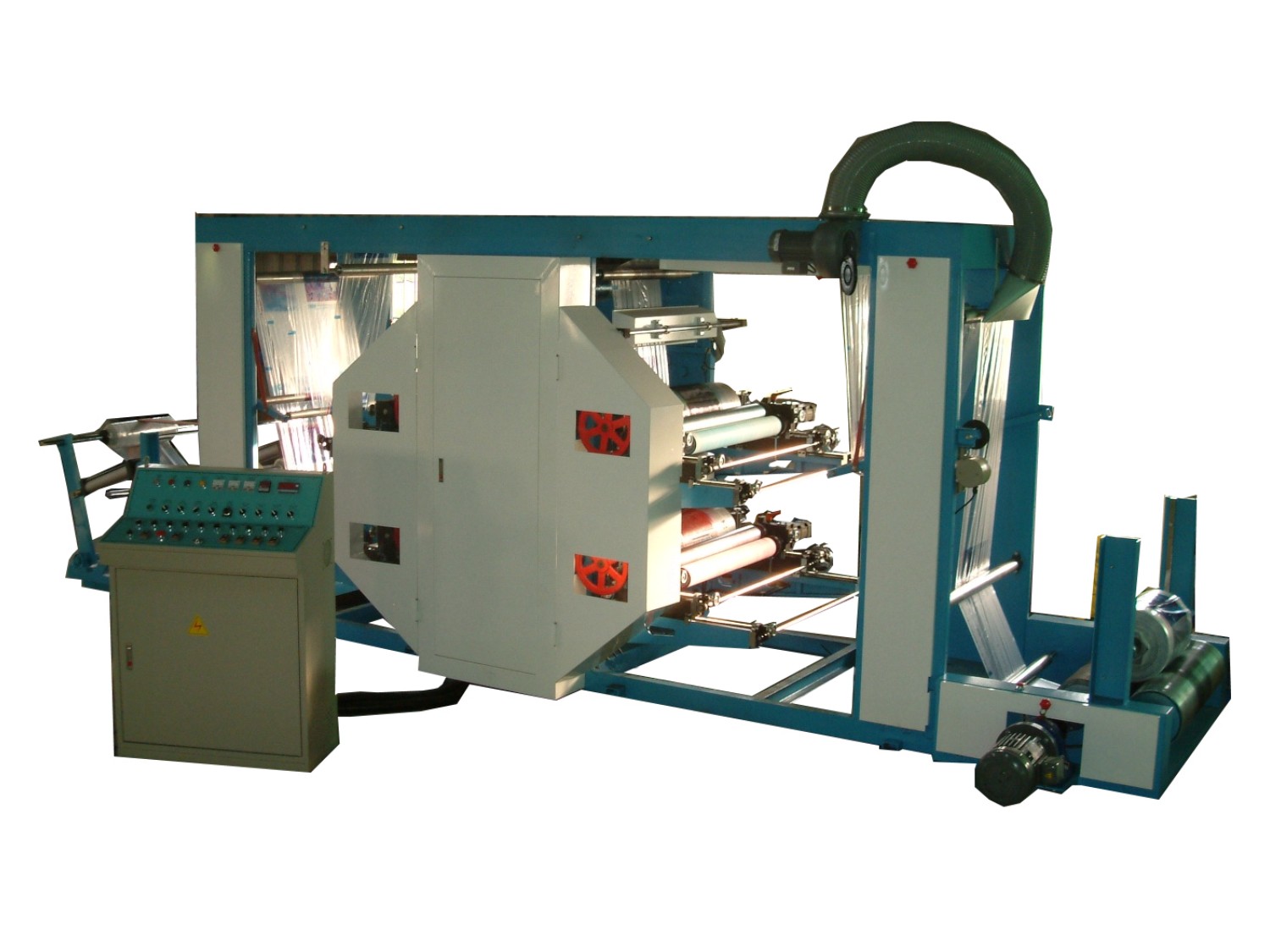

LE-4800PR

 PP WOVEN REEL TO REEL LINE MACHINE





MODEL

LE-4800PR

CHARACTERISTIC

AUTOMATIC FLEXOGRAPHIC COLOR PRINTING

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAG

PRODUCTION CAPACITY

80~100M/Minute

        PRINTING POSSIBILITY

       0+4 , 1+3 , 2+2

NO.OF COLOR

4 COLORS

PRINTING WIDTH

400MM~800 MM

PRINTING LENGTH

600-1250 MM



PRINTING

RUBBER PLATE , ZINE PLATE (7MM)

POWER

3HP

POWER COMSUMPTION

17.4KW

PRINTING INK

  INK

MACHINE DIMENSION

L6530 x W1850 x H2180MM (N.W 3200KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

  1. 360º continuous and adjustable longitudinal register device.
  2. Easy operation flexible starting accurate color register.
  3. The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
  4. Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
  5. Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
  6. Current output type temperature control system makes heating quicker and electricity saving.
  7. The printing ink is spread by the knurled cylinder with even ink color.
  8. Obverse and reverse side once-through continuous printing.
  9. The imported frequency control of motor speed adapts to different printing speeds.
  10. There are lnching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

 PS: Hereinbefore machine predicate beauty equipment:

1:Machine cogwheel poor fast style. Microposition ceaseless machine transfer version to version device,Can never again by means of close down Shih just  microposition somewhere or so transfer version to version, Fast to version. Fast to version by means of arrive the finely of print quality raising.

2:Szu adoption AC motor torsional  big, Auto measure fast receive expect pace,  Autoes measures fasts receive expect by littles to great paces ,And only need to adjust as soon as transfer  Niu alterable print  pace.Non old types of have two transfers Niu mains motors holds on Shih receive expect also ask for with transfers have different  Pu phenomena.
