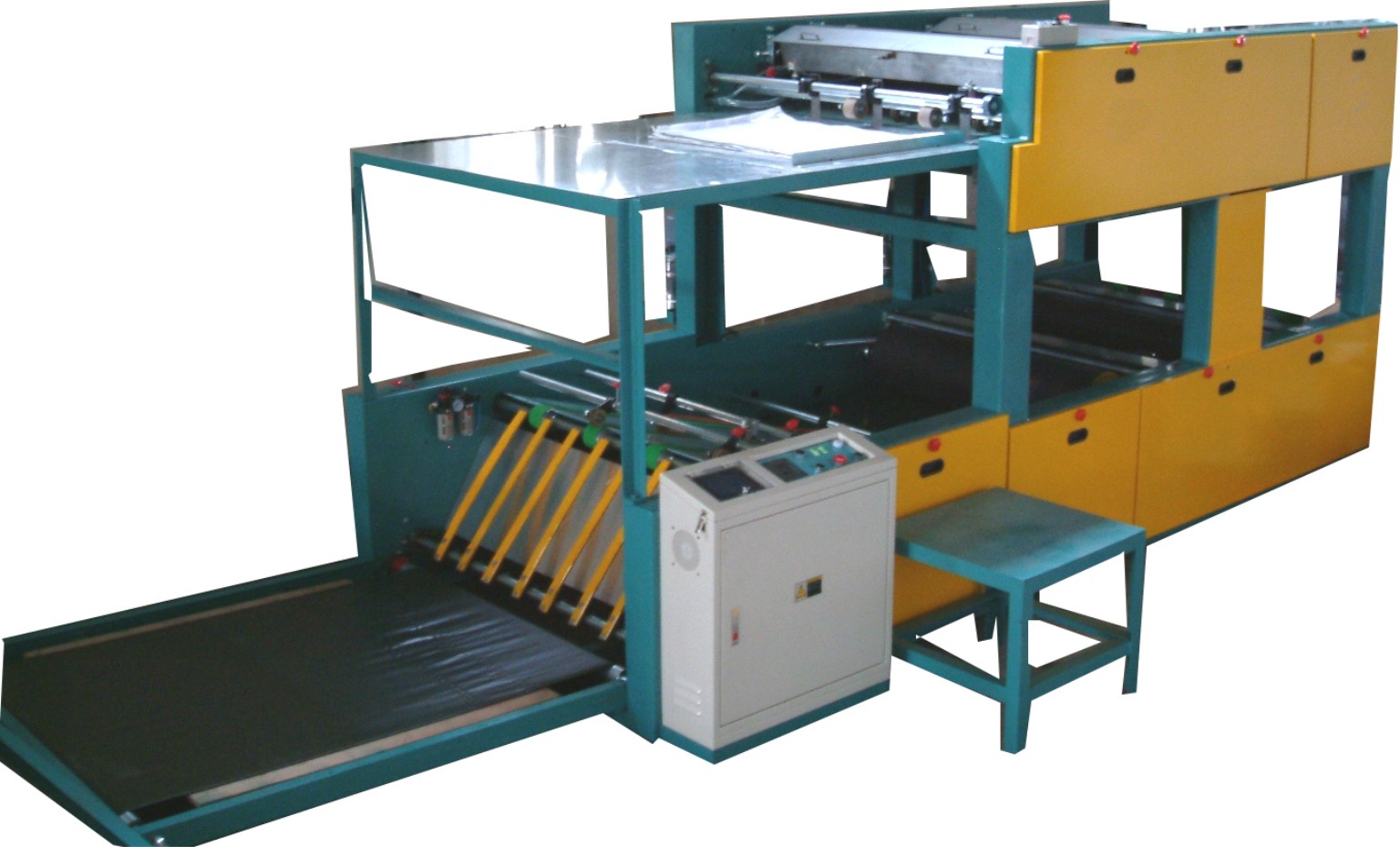

LE-1+2 &  LE-2+2

"pp woven bag" No change print roller TWO SURFACE COLOR PRINTING



     VCD



No change print roller  TWO SURFACE COLOR PRINTING

          PAT



PP/PE woven bag flexographic printing press Special Features:
Can be individually operated(manual feeding type) or connect with most
brand's conversion line and become a integrated line that combines cutting,
sewing & printing features into a fully automatic processing unit.
Single sided or double sided, 1 to 6 colors combination available per request.
Special separation device between color-plate cylinder and conveying belt to
avoid stain during empty load.
No need to change roller(s) for different size's imprint and/or bag measurements
within rated range.

Main Feature:

·  High Output UpTo 60 Bag/Min.

·   Equipped ink Circulation Pump ln Each ColorFor Manage Proper ink Consistency.

·  Special Desinrn For Change The Printing Plate Quickly And Easily.

·  Easy Operation.

·  Patented Separation Device Between Printing Cylinder And Conveyor Belt To Avoid Stain Conveyor During Empty Load.



MODEL
LE-1+2

LE-2+2

CHARACTERISTIC
TWO SURFACE COLOR PRINTING

TWO SURFACE COLOR PRINTING

APPLICABLE PLASTIC CLOTH
PP/PE WOVEN BAGS

PP/PE WOVEN BAGS

PRODUCTION CAPACITY
0 ~ 60(BAG/MIN)

0 ~ 60(BAG/MIN)

CAPACITY OP BAG
130CM X 85CM

130CM X 85CM

AREA OF PRINTING
105CM X 80CM

105CM X 80CM

PRINTING
RUBBER PLATE , ZINE PLATE (7MM)

RUBBER PLATE , ZINE PLATE (7MM)

MAN POWER

1~2 PERSONS

1~2 PERSONS

        MAIN DRIVING MOTOR
2HP

2HP

POWER COMSUMPTION
3.5KW

3.6KW

PRINTING INK
FLEXO INK

FLEXO INK

MACHINE DIMENSION
L7807x W1650 x H1980MM (N.W3000KGS)

L7807 x W1650 x H1980MM (N.W3300KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
OPTIONAL EQUIPMENTS:
AUTO BAG
CERAMIC ANILOX ROLLER
INK PUMP
