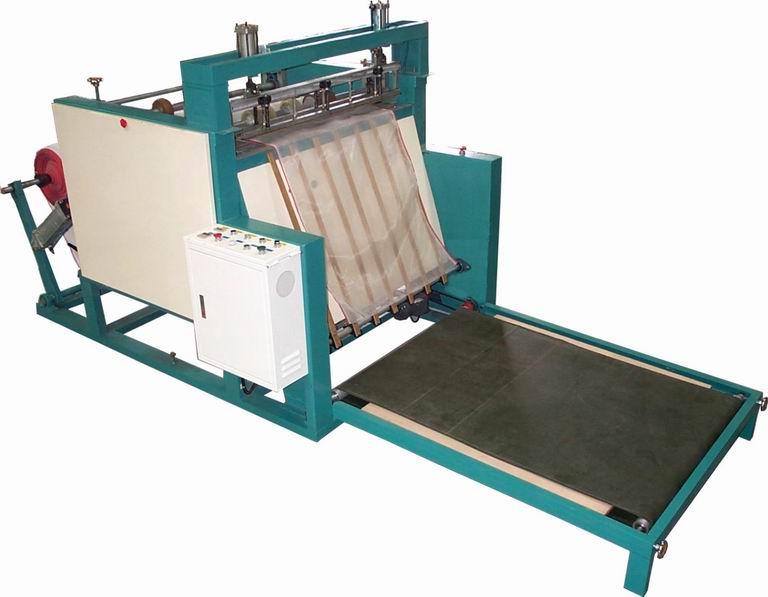

LE-10

MODEL
LE-10

DIAMETER OF UNWINDING CLOTH

1200 MM

MAX. CUTTING WIDTH
1000MM
MAX. CUTTING LENGTH
0-9999MM

CUTTING ACCURACY

+.-  4MM

WORKING CAPACITY
25~35 cut/min(25-35pcs/min)
DRIVING MOTOR
AC 2HPX1, 1/4 X1
POWER REQUIRED
3.5KVA
BAG COUNTER
1set
EASY OPEN MOUTH DEVICE
1set

DELIVERY UNIT

COUNTING STACK TYPE BELT CONVEYOR

AUTO UNWINDER
1set(cylinder 2 pcs)
LOADING CAPACITY
1250kgs
MANPOWER REQUIRED
1person
MACHINERY NET WEIGHT
800kgs
MACHINERY DIMENSION
L438 x W155 x H140cm
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

LE-15

LE-15S



LE-18



MODEL
LE-15&LE-15S
LE-18
MAX. CUTTING WIDTH
150CM
180CM
MAX. CUTTING LENGTH
0-9999cm
0-9999cm
WORKING CAPACITY
20 cut/min(20-40pcs/min)
20 cut/min(20-40pcs/min)
DRIVING MOTOR
2HP
2HP
ELECTRICITY HEAT
3.5KVA
4.0KVA
BAG COUNTER
1set
1set
EASY OPEN MOUTH DEVICE
1set
1set
AUTO UNWINDER
1set(cylinder 2 pcs)
1set(cylinder 2 pcs)
LOADING CAPACITY
1250kgs
1800kgs
MANPOWER REQUIRED
1person
1-2person
MACHINERY NET WEIGHT
850kgs
980kgs
MACHINERY DIMENSION
L228 x W230 x H140cm
L260 x W230 x H140cm
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
