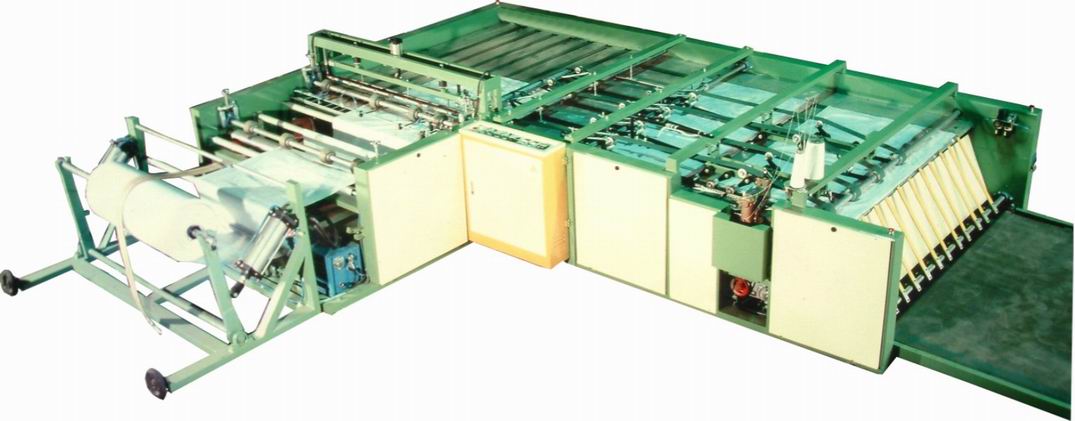

UPSIZING AUTOMATIC PP.PEWOVEN BAG HEAT CUTTING AND
SEWING MACHINE
|
LE-300 |
|
MODEL |
LE-300 |
|
CHARACTERISTIC |
UPSIZING AUTOMATIC CUTTING&SEWING |
|
APPLICABLE
PLASTIC CLOTH |
PP/PE WOVEN BAGS |
|
PRODUCTION
CAPACITY |
14-22(BAG/MIN) |
|
CUTTING ACCURACY |
+.- 5MM |
|
MAXIMUM OF
CUTTING LENGTH |
1800MM |
|
MAXIMUM OF
CUTTING WIDTH |
1500MM |
|
STITCHING RANGE |
6~12
(P/MM) |
| DIAMETER OF UNWINDING CLOTH |
1200 MM |
|
DELIVERY UNIT |
COUNTING STACK TYPE BELT CONVEYOR |
|
BAG MOUTH ANTI-STUCK DEVICE |
EQUIPPED |
|
MAN POWER |
1 PERSONS |
|
SIDE FOLDING
WIDTH |
20-30MM |
|
MAIN
DRIVING MOTOR
|
AC 2HPX1 , 1HPX2 , 1/4HPX1 |
|
AIR COMPRESSOR |
3HP X 1UNIT |
|
POWER REQUIRED |
10KW |
|
MACHINE DIMENSION |
L7175 x W1850 x
H1200MM (N.W2950KGS) |
|
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE |
|
