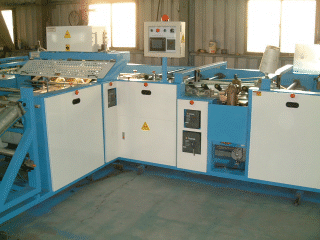

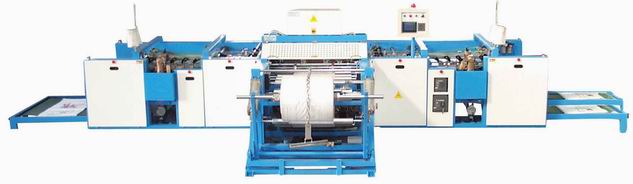

Model LE-60 is indeed the newest and most speedy cutting and sawing machine of LUNG-YE MACHINERY INDUSTRIAL CO., LTD.

The most outstanding feature of LE-60 is to convey pp and PE woven bags crossed at both the left and right sides! That is to say, both a sewing machine at the left side and other sewing machine at the right side can:

1.      increase largely the quantity of output of cut bags

2.      steadily convey bags with possibility of adding printer, double joint hem-line sawing fittings and for double stitch at single side

This model is equipped with SERVO MOTOR to control the length of bags and then can cut off 86 bags per minute at most! Besides, the function of Laninated cutting makes this model a device with high efficiency and plenty output, conforming with full automatic cutting and sawing machine with “double-head” in the industry!

MODEL

LE-60

CHARACTERISTIC

AUTOMATIC CUTTING& 2 SEWING

                             SERVO MOTOR

　                              2.0kw     JAPAN

CONTINUOUS CUTTING

　HEAT   SUCCESSIVE CUTTING

                            CUTTING SPEED

                                       86 PCS (MIN)

LAMINATED CUTTING

1PCS

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

50~60pcs(BAG/MIN)

CUTTING LENGTH

 550~1250 MM

CUTTING WIDTH

400~850 MM

CUTTING ACCURACY

+.- 1MM

DELIVERY UNIT

COUNTING STACK TYPE BELT CONVEYOR

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/MM)

DIAMETER OF UNWINDING CLOTH

1200 MM

SIDE FOLDING WIDTH

15~25MM

MAN POWER

1 PERSONS

MAIN DRIVING MOTOR

AC 3HPX1, SERVO MOTOR 2.0KWX1 ,1HPX1,1/4HPX2

POWER REQUIRED

13.6KW

AIR COMPRESSOR

3HP X 1UNIT

MACHINE DIMENSION

L7980 x W3880 x H1360MM  ( N.W2850KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
