LUNG YE MACHINERY CO., LTD.

FACTORY: No. 9,Biliau Rd.,Tsztung Shiang , Yunlin , Taiwan 647,R.O.C.
       Tel:  886-5-584-6851     Fax: 886-5-633-1449

                  http:// www.lungye.com.tw         E-mail: lye@lungye.com.tw            lye@ppwovenbag.com.tw

                 We are a manufacturer for "PP Woven Bag" Equipment,Machinery for Production of Woven Plastic Sacks(Flat Yarn Extruder,Circular Loom, Automatic"Cutting"and "sewing"Machine,"Laminating"Machine,"Printing"Machine,etc)in Taiwan.Our PP/PE "woven bags"can pack "onion",sugar,flour,grain,fertilizer,chemicals,cement,

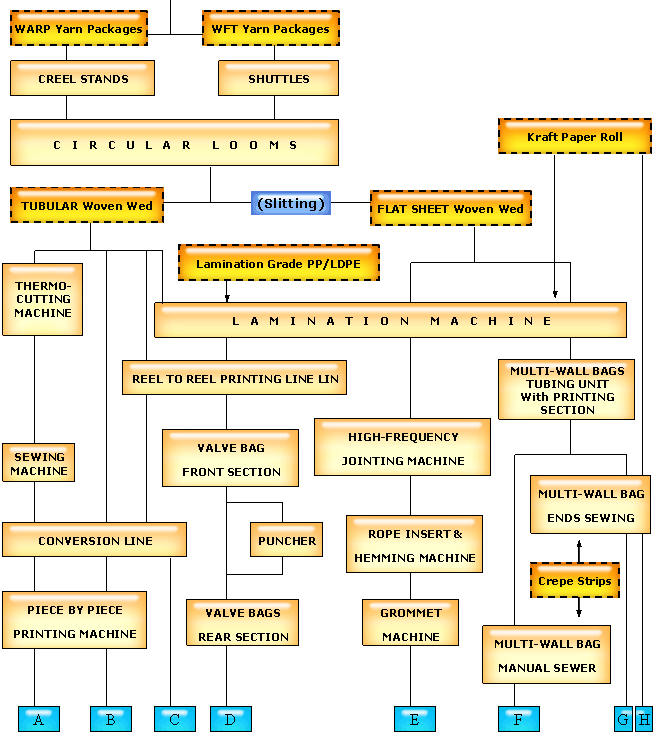

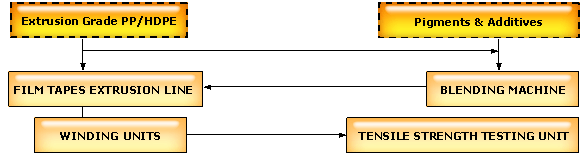

PP WOVEN BAG SCHEMATIC FLOWCHART FOR PRODUCTION OF PP WOVEN BAG SACKS & TARPAULINS

#A,#B & #C are ordinary bags with top heat cut, bottom-fold sewn and imprints. #D are laminated bags with gussets, both ends single-fold sewn and feeding valve formed. #E are both sides laminated tarpaulins and related products. #F & #G are fabric and/or fabric/kraft laminated bags with crepe kraft strips wrapped ends sewing and with (item #F manual fold , item #G in-line processed) feeding valve formed. #H are multi-ply kraft paper bags gusseted, printed., both ends crepe kraft strips wrapped sewn and feeding valve formed.
