pp woven bag Automatic Cutting and sewing Machine

         FULLY AUTOMATIC PP WOVEN BAG CONVERSION LINE   Made in Taiwan

         90° Bag Transfer Gripper TypTow Servo Motors

   LE-2000 DN2  ( new 90° CLAW TYPE Warranty 3 year)

            DVD      Mark Reading Sensor        NEW speed 46PC~min  Laminating bag

                                                                                                     PP WOVEN BAGS 90° Gripper Type Servo Motor cutting sewing   90° Transfer Grippers    ( new 90° CLAW TYPE Warranty 3 year)




Description:
90° Servo Transfer Reciprocate Movement  Gripper Type

Increase pp woven bag transmit stable and the advantages  enhance output 。

Ingredient's quick change

Two Servo Motor increase largely the quantity of output of cut bags。

Heat Cutting inverter Motor Control

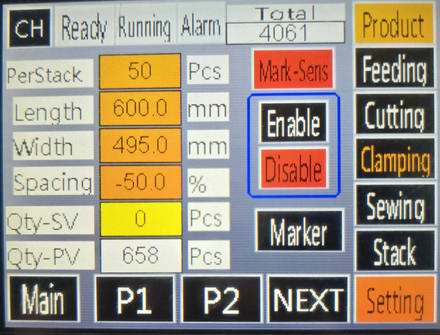

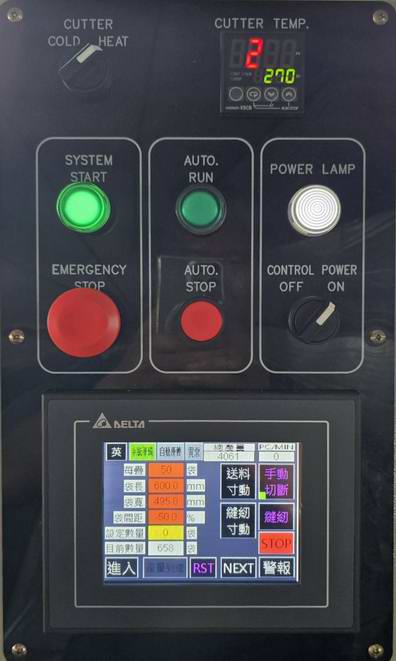

Touch Control machine operation interface。

        ●  The new TOW SURFACE broken bags surface inspection receipt device C

High speed production capacity 32~46pcs(BAG/MIN)

              ( new 90° CLAW TYPE Warranty 3 year)

The new TOW SURFACE broken bags surface inspection receipt device C

@

       SPECIFICATION

MODEL

LE-2000 DN2

CHARACTERISTIC

AUTOMATIC CUTTING AND SEWING

 SERVO MOTOR

 3.5HP Servo Motor  x1PCS

        90°Degrees Transfer Driven Motor   3.5HP Servo Motor X1PCS

   CONTINUOUS CUTTING

HEAT SUCCESSIVE CUTTING

       Sewing Machine Driven Motor

          1 HP AC Motor With Inverter Control

  Cutting Knife Driven Motor                    1/2 HP AC Motor With Inverter Control
Cutting Knife Unit               Flat Type High Quality Alloy Steel Cutter
Sewing Unit       New Long
               Sewing Thread Broken Alarm      Enclosed
               E.P.C     Edge Position Controller      Enclosed

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

32~46pcs(BAG/min)

CUTTING LENGTH

 500~1300 mm

CUTTING WIDTH

300~860 mm

CUTTING ACCURACY

+.- 1mm

DELIVERY UNIT  Bag Delivery (Every 25~ 50 bags)

COUNTING STACK TYPE BELT CONVEYOR

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/mm)

DIAMETER OF UNWINDING CLOTH

1400 mm

SIDE FOLDING WIDTH

15~25mm

MAN POWER

             1 PERSONS

POWER REQUIRED

7KW

AIR COMPRESSOR

1HP X 1UNIT

MACHINE DIMENSION

L5800mm x W3700mm x H1620mm  ( N.W2150KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

   OPTIONAL EQUIPMENTS:

PRINTING MACHINE

1~6 COLOR    LE-2+3    LE-03

           Automatic Detect & Eliminate Broken Bag

1PCS
sewing machine OIL Heat sink pump  46pcs(BAG/MIN) 1PCS

PRINTING PHOTOCELL (MARK)

1PCS



   LUNG YE MACHINERY CO., LTD.

FACTORY:NO:9Pei Liao Road , Ma Yuan Village , Tzi Tong County , Yunlin Hsien , Taiwan 647

Tel: 886-5-584-6851    Fax: 886-5-585-0074
