LE-09

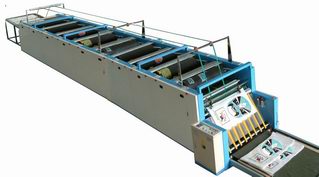

AUTOMATIC PP WOVEN BAG ONE SIED COLOR PRINTING  MACHINE

VCD1          VCD2

Main Feature:

·High Output UpTo 40 Bag/Min.

·Equipped ink Circulation Pump ln Each ColorFor Manage Proper ink Consistency.

·Special Desinrn For Change The Printing Plate Quickly And Easily.

·Easy Operation.

·Patented Separation Device Between Printing Cylinder And Conveyor Belt To Avoid Stain Conveyor During Empty Load.

pp woven bag flexographic printing press Special Features:
※Can be individually operated(manual feeding type) or connect with most
brand's conversion line and become a integrated line that combines cutting,
sewing & printing features into a fully automatic processing unit.
※Single sided or double sided, 1 to 12 colors combination available per request.
※Special separation device between color-plate cylinder and conveying belt to
avoid stain during empty load.
※No need to change roller(s) for different size's imprint and/or bag measurements
within rated range.

MODEL LE-09 CHARACTERISTIC AUTOMATIC ONE SIDE COLOR PRINTING APPLICABLE PLASTIC CLOTH PP/PE WOVEN BAGS PRODUCTION CAPACITY 0 ~ 40(BAG/MIN) CAPACITY OP BAG 1300mm X 850mm AREA OF PRINTING 1050mm X 800mm PRINTING RUBBER PLATE , ZINE PLATE (7MM) MAN POWER 1~2 PERSONS MAIN DRIVING MOTOR 5HP POWER REQUIRED 6.4KW PRINTING INK FLEXO INK AIR COMPRESSOR 3HP X 1UNIT MACHINE DIMENSION L17814 x W1650 x H1000MM (N.W5800KGS) THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE Lung - Ye Machinery Co.,Ltd.  NO:9Pei Liao Road,Ma Yuan Village,Tzi Tong County,Yunlih Hsien,Taiwan.                           TEL: +886-5-584-6851        FAX: +886-5-585-0074                         http://www.lungye.com.tw      E-mail:lye@lungye.com.tw
