We are a manufacturer for "PP Woven Bag" Equipment , Machinery for Production of Woven Plastic Sacks

( Flat Yarn Extruder, Circular Loom, Automatic "PP Woven Bag Cutting and sewing Machine", Laminating Machine, Printing Machine, etc. )

                            FULLY AUTOMATIC "PP WOVEN BAG" CONVERSION LINE   Made in Taiwan

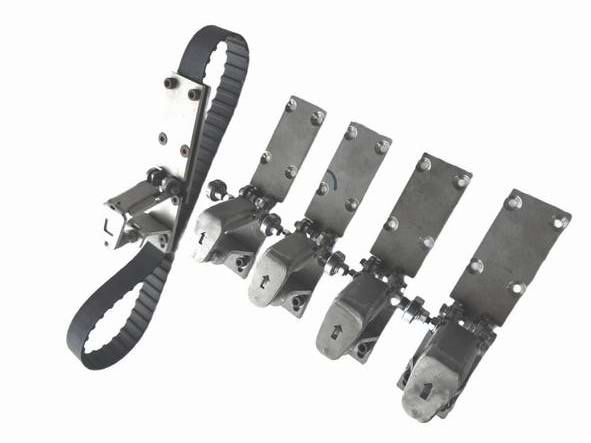

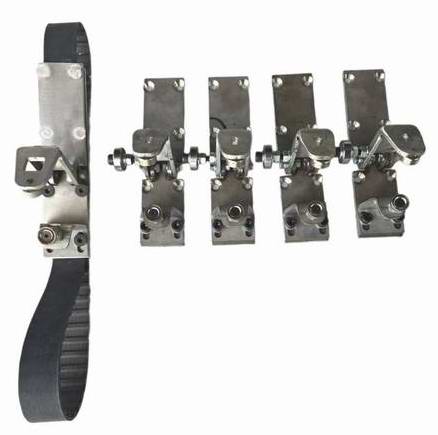

                    90° Bag Transfer Gripper Type Tow Servo Motors

      new LE-2024  ( new 90° Gripper  Warranty 3 year)

high speed 56pcs(bag/min)



new   vcd 1               vcd 2



( new 90° Gripper Warranty 3 year)

      PP WOVEN BAGS 90° Gripper Type Servo Motor cutting sewing   90° Transfer Grippers

                                                                                                     The new two surfaces broken bags surface inspection receipt device 。      New Long  DKN3-BP
  high speed 56pcs(bag/min)





Description:
● 90° Servo Transfer Reciprocate Movement  Gripper Type。

● Increase pp woven bag transmit stable and the advantages  enhance output 。

● Ingredient's quick change。

● Two Servo Motor increase largely the quantity of output of cut bags。

● Heat Cutting inverter Motor Control 。
● Touch Control machine operation interface。

        ●  The new two surfaces broken bags surface inspection receipt device 。

● High speed production capacity 32~56pcs(BAG/MIN)。

              ( new 90° Gripper  Warranty 3 year)

       SPECIFICATION

MODEL

LE-2024

CHARACTERISTIC

AUTOMATIC CUTTING AND SEWING

 SERVO MOTOR

 2HP Servo Motor  x1PCS
        90°Degrees Transfer Driven Motor  3HP Servo Motor X1PCS

   CONTINUOUS CUTTING

HEAT SUCCESSIVE CUTTING

       Sewing Machine Driven Motor

          1 HP AC Motor With Inverter Control
  Cutting Knife Driven Motor                    1/2 HP AC Motor With Inverter Control
Cutting Knife Unit               Flat Type High Quality Alloy Steel Cutter
Sewing Unit       New Long  DKN3-BP 4500rpm
               Sewing Thread Broken Alarm      Enclosed
               E.P.C     Edge Position Controller      Enclosed

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

32~56pcs(BAG/min)

CUTTING LENGTH

 500~1400 mm

CUTTING WIDTH

300~850 mm

CUTTING ACCURACY

+.- 1mm

DELIVERY UNIT  Bag Delivery (Every 25~ 50 bags)

COUNTING STACK TYPE BELT CONVEYOR

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/mm)

DIAMETER OF UNWINDING CLOTH

1400 mm

SIDE FOLDING WIDTH

15~25mm

MAN POWER

           1 PERSONS

POWER REQUIRED

7KW

AIR COMPRESSOR

1HP X 1UNIT

MACHINE DIMENSION

L7980mm x W3880mm x H1360mm  ( N.W2180KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
