pp woven bag Automatic Cutting and sewing Machine

 FULLY AUTOMATIC PP WOVEN BAG CONVERSION LINE   Made in Taiwan

                    90° Bag Transfer Gripper Type Tow Servo Motors

      LE-2000 DN2  ( new 90° CLAW TYPE Warranty 3 year)

 VCD 1              DVD 2

 Discontinued machines, for reference only

PP WOVEN BAGS 90° Gripper Type Servo Motor cutting sewing   90° Transfer Grippers    ( new 90° CLAW TYPE Warranty 3 year)




Description:
● 90° Servo Transfer Reciprocate Movement  Gripper Type。

● Increase pp woven bag transmit stable and the advantages  enhance output 。

● Ingredient's quick change。

● Two Servo Motor increase largely the quantity of output of cut bags。

● Heat Cutting inverter Motor Control 。

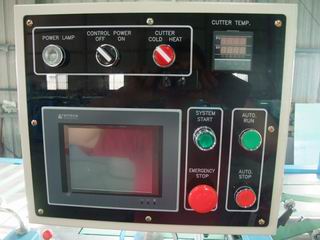

● Touch Control machine operation interface。

● High speed production capacity 32~42pcs(BAG/MIN)。

              ( new 90° CLAW TYPE Warranty 3 year)
　

       SPECIFICATION

MODEL

LE-2000 DN2

CHARACTERISTIC

AUTOMATIC CUTTING AND SEWING

 SERVO MOTOR

 3HP Servo Motor  x1PCS

        90°Degrees Transfer Driven Motor   3HP Servo Motor X1PCS

   CONTINUOUS CUTTING

HEAT SUCCESSIVE CUTTING

       Sewing Machine Driven Motor

          1 HP AC Motor With Inverter Control

  Cutting Knife Driven Motor                   1/2 HP AC Motor With Inverter Control
Cutting Knife Unit              Flat Type High Quality Alloy Steel Cutter
Sewing Unit      New Long
               Sewing Thread Broken Alarm     Enclosed
               E.P.C     Edge Position Controller     Enclosed

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

PRODUCTION CAPACITY

32~45pcs(BAG/min)

CUTTING LENGTH

 500~1400 mm

CUTTING WIDTH

250~850 mm

CUTTING ACCURACY

+.- 1mm

DELIVERY UNIT  Bag Delivery (Every 25~ 50 bags)

COUNTING STACK TYPE BELT CONVEYOR

BAG MOUTH ANTI-STUCK DEVICE

EQUIPPED

STITCHING RANGE

6~12 (P/mm)

DIAMETER OF UNWINDING CLOTH

1400 mm

SIDE FOLDING WIDTH

15~25mm

MAN POWER

             1 PERSONS

POWER REQUIRED

7KW

AIR COMPRESSOR

1HP X 1UNIT

MACHINE DIMENSION

L7980mm x W3880mm x H1360mm  ( N.W2888KGS)

CUBAGE  ARK

1X20"

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
