MODEL
|
LE-4800PR
|
|
|
CHARACTERISTIC
|
AUTOMATIC FLEXOGRAPHIC COLOR PRINTING
|
|
|
APPLICABLE PLASTIC CLOTH
|
PP/PE WOVEN BAGS&PE BAG
|
|
|
SERVO MOTOR |
15HP |
|
|
PRODUCTION CAPACITY
|
60~100M/Minute
|
|
|
PRINTING POSSIBILITY
|
0+4 , 1+3 , 2+2
|
|
|
NO.OF COLOR
|
4 COLORS
|
|
|
PRINTING WIDTH
|
400MM~850 MM
|
|
|
PRINTING LENGTH
|
500-1300 MM
|
|
|
PRINTING
|
RUBBER PLATE , ZINE PLATE (7MM)
|
|
|
POWER
SERVO MOTOR
|
15HP
|
|
|
POWER COMSUMPTION
|
17.4KW
|
|
|
PRINTING INK
|
INK
|
|
|
MACHINE DIMENSION
|
L7800
x W2200 x H3750MM (N.W 7500KGS)
|
|
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE
|
- 360º SERVOMOTOR
continuous and adjustable longitudinal register device.
-

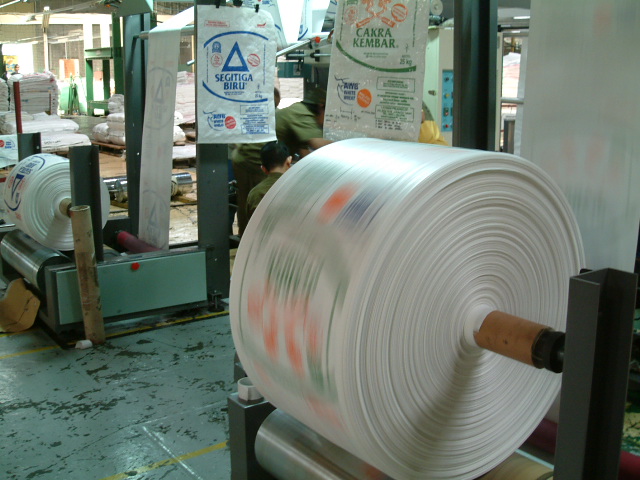

REEL
TO REEL PRINTING
MACHINE
-
Easy operation flexible starting accurate color register.
-
The meter counter can set printing quantity according to the requirements
stop the machine automatically at the set quantity or when the material is
cut off.
-
Lift and lower the printing plate cylinder manually it will automatically
stir the printing ink after lifting.
-
Reliable drying system coordinated with high-speed rotation it will
automatically break circuit when the machine stops.
-
Current output type temperature control system makes heating quicker and
electricity saving.
-

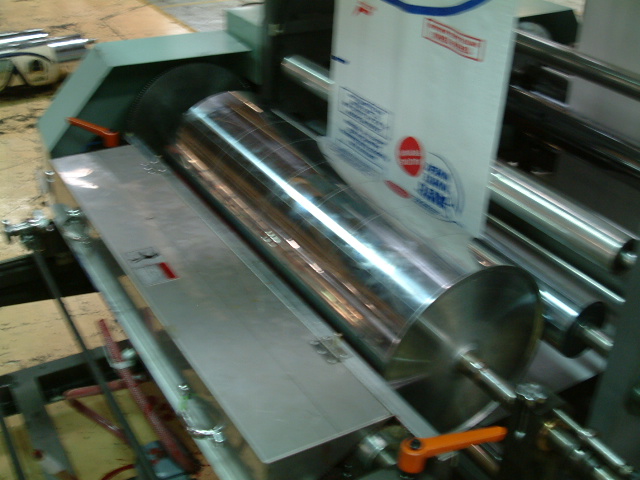

The printing ink is spread by the knurled cylinder with even ink color.
-

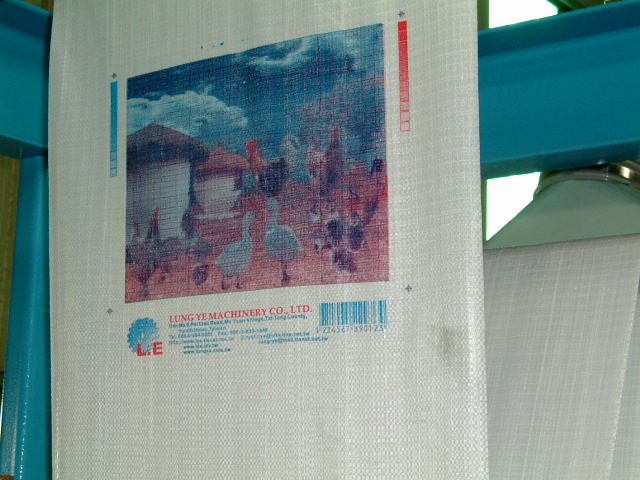

Obverse and reverse side once-through continuous printing.
-
The imported frequency control of motor speed adapts to different printing
speeds.
-
There are inch stopping buttons on the plate roller base and material
rolling rack so as to make it easy operate the machine when the plate is
installed.
|
OPTIONAL EQUIPMENTS: |
|

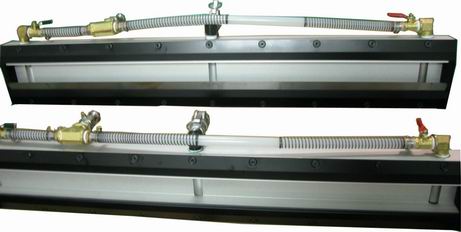

Doctor Blade Type
|
4PCS |
DOCTOR BLADES
|
