L.E-03H

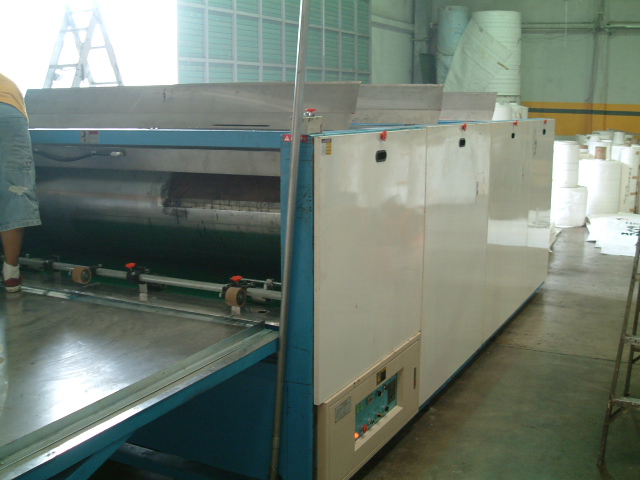

JUMBO BAG FLEXOGRAPHIC PRINTING PRESS
Main Feature:
·High Output UpTo 40 Bag/Min.
·Equipped ink Circulation Pump ln Each ColorFor Manage Proper ink Consistency.
·Special Desinrn For Change The Printing Plate Quickly And Easily.
·Easy Operation.
·Patented Separation Device Between Printing Cylinder And Conveyor Belt To Avoid Stain Conveyor During Empty Load.
|
型號 MODEL |
LE-03H |
|
特性CHARACTERISTIC |
AUTOMATIC ONE SIDE COLOR PRINTING單面印刷 |
|
適用材質 APPLICABLE PLASTIC CLOTH |
PP/PE WOVEN BAGS編織袋 |
|
產量 PRODUCTION CAPACITY |
18~ 25(BAG/MIN)袋/分 |
|
製袋面積 CAPACITY OP BAG |
2000MM X 2250MM |
|
印刷面積 AREA OF PRINTING |
1960MM X 2150MM |
|
印刷版 PRINTING |
RUBBER PLATE , ZINE PLATE (7MM) |
|
人力 MAN POWER |
1~2 PERSONS |
|
主傳動馬達 MAIN DRIVING MOTOR |
3HP |
|
耗電量 POWER REQUIRED |
3.3KW |
|
油墨 PRINTING INK |
FLEXO INK 水性 (酒精) |
|
空壓機 AIR COMPRESSOR |
1HP X 1UNIT |
|
機械尺寸 MACHINE DIMENSION |
L7957 x W2650 x H1200MM (N.W3800KGS) |
|
THE
SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE |
|
Lung - Ye Machinery Co.,Ltd.
NO:9Pei Liao Road,Ma Yuan Village,Tzi Tong County,Yunlih Hsien,Taiwan.
TEL: +886-5-584-6851 FAX: +886-5-585-0074
http://www.lungye.com.tw E-mail:lye@lungye.com.tw
